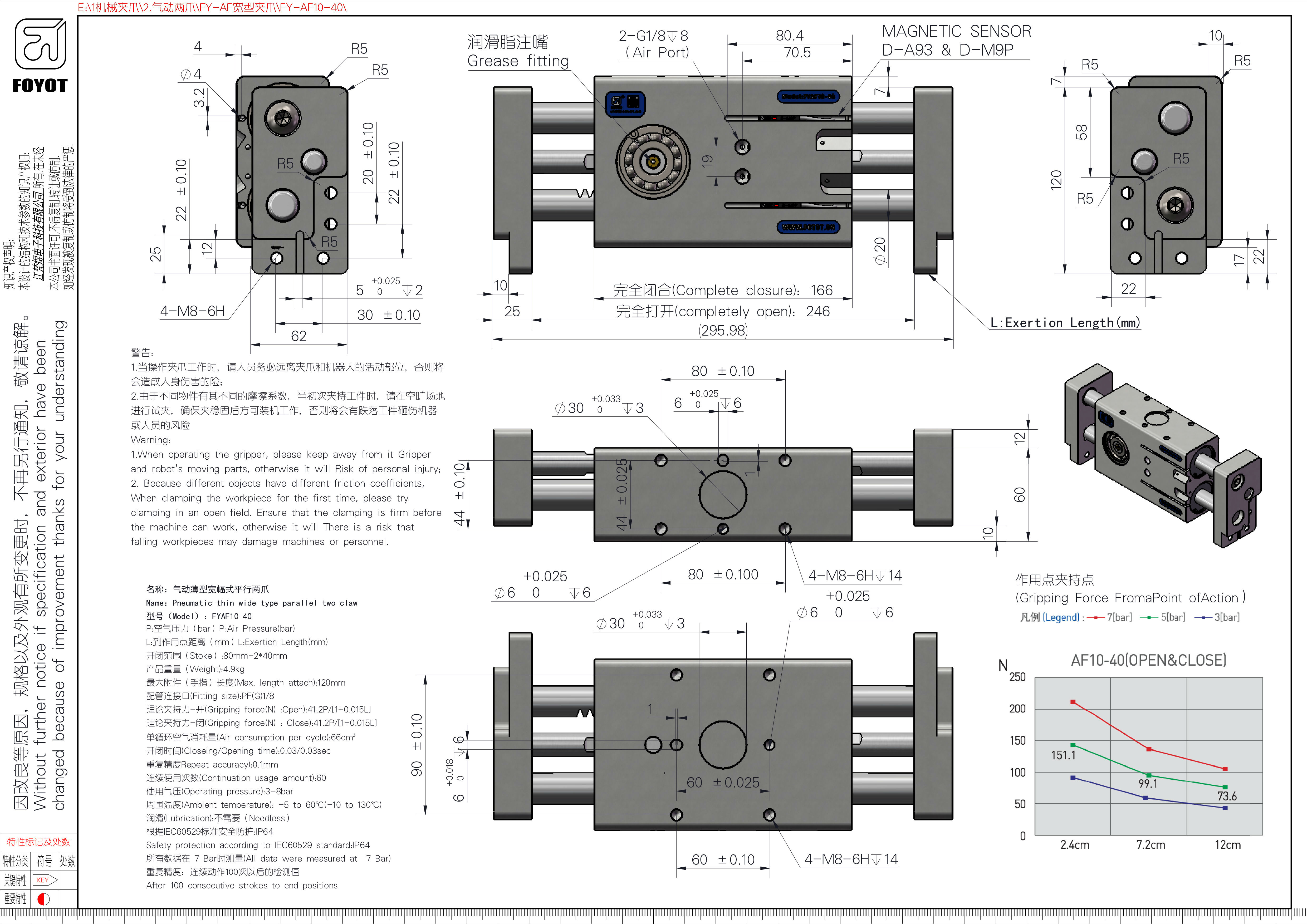

名稱：氣動薄型寬幅式平行兩爪

Name:Pneumatic thin wide type parallel two claw

型號(Mode I):FYAF10-40

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉范圍(Stoke)：80mm=2*40mm

產品重量(Veight):4.9kg

最大附件（手指）長度(Max.length attach)::120mm

配管連接口（Fitting size:PF(G1/8

理論夾持力-開(Gripping force(N):Open:41.2P/八1+0.015L」

理論夾特力-閉(Gripping force(N):Close):41.2P/八1+0.015L]

單循環空氣消耗量(Air consumption per cycle):66cm3

開閉時間（Closeing/.Opening time:0.03/0.03sec

重復精度Repeat accuracy):0.1mm

連續使用次數(Continuation usage amount):60

使用氣壓（Operating pressure:3-8bar

周圍溫度(Ambient temperature:-5to60℃(-10to130℃)

潤滑(Lubrication):不需要(Needless)

根據EC60529標準安全防護：1P64

Safety protection according to IEC60529 standard:IP64

所有數據在7Bar時測量(All data were measured at7Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
